Micro Photography Second Attempt

See my Micro-photography note for how this project started.

For the second round, I decided to connect the Zenit directly to the microscope’s camera mount instead of attaching lenses one by one. The microscope came with a 1x eyepiece mount for cameras, so I used that to attach the body.

What I found

1. Magnification issues

   The 1x eyepiece mount worked, but the magnification was nowhere near as strong as the 25x eyepieces on the main viewing tube. This makes sense for digital cameras, since they can zoom in digitally. But with film, that “extra magnification” just isn’t there, which makes it a limitation for my setup.

2. Focus challenges

   Getting the correct focus is still tricky. The distance from lens to film plane is extremely sensitive—just a small shift can ruin sharpness.

3. Circular samples in the photo

   In the viewfinder, I could see the sample filling the whole frame as a rectangle. But when the film came back, the images showed up as circles inside the frame. I’m not sure yet why this mismatch happens, but it’s something to look into.

4. Exposure experiments

   Exposure continues to be an issue. I tested shutter speeds at 1/500, 1/250, 1/125, and 1/60. Out of these, 1/60 gave the closest to correct exposure, but there’s still room to refine this.

5. Next steps

   For the next experiment, I’ll try:

   • Longer exposure times

   • Higher magnification eyepieces

   • Directly mounting higher-power microscope objectives to the camera, since that actually gave more promising results than the camera mount in these first two trials.

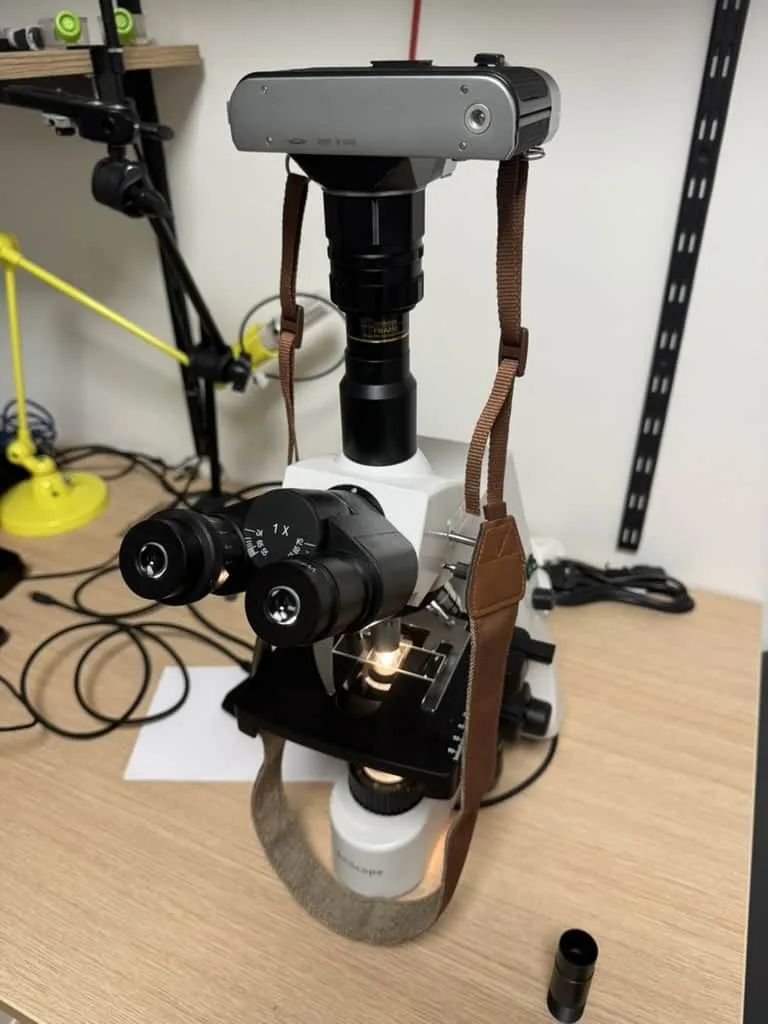

Here’s the setup for this attempt:

And here are some resulting images:
